RESTful Endpoints

This section describes every endpoint needed to integrate to E-Snapped API.

Connect and authenticate to the API

Connect and authenticate to the API to be able to commence a single transaction.

POST/esws/api/connect

Notes

1. Issued authorization token is valid within 60 seconds upon response.
2. Integrator must authenticate first before sending a transaction.

Authorization

Request Samples

cURL

curl -X POST "http://test.ws.e-snapped.com/esws/api/connect"
-H "accept: application/json"
-H "Key: amaclead.altpaynet"
-H "Secret: qwerty12345"
-H "Content-Type: application/json"

Sample Call

var settings = {
  "url": "{host}/esws/api/connect",
  "method": "POST",
  "timeout": 0,
  "headers": {
    "Key": "jdoe.altpaynet",
    "Secret": "qwerty12345",
    "Content-Type": "application/json"
  },
  "data": JSON.stringify({}),
};

$.ajax(settings).done(function (response) {
  console.log(response);
});

Responses

200 Successful Request

400 Result of missing/invalid header parameter/s

401 Result of incorrect authentication credentials. Make sure to provide the correct key and secret values

Response Samples

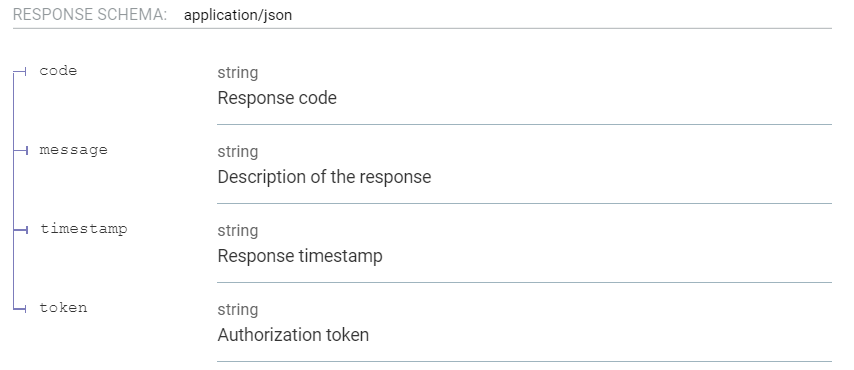

200

{
  "code": "OK.02",
  "message": "Authentication Success",
  "timestamp": "2020-02-07 03:25:14.953",
  "token": "Bearer eyJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJBbHRQYXlOZXQgQ29ycCIsImlhdCI6MTU4MTA0NTkxNCwiZXNrIjoiVThnSGElMkJDTVdie FNRMVJ0WUEyZ0FkMmN4cEtPZW8lMkJMbXh5TEwxS3k1ZW8lM0QuZXNsbFdSQ3NEbk9UalM4TG9TbHMlMkJUUkElM0QlM0QiLCJlc3AiOiI1bjE3T0dGVlpnOW5R VW5TWTRGUXZRJTNEJTNELmVzRXRvT1JUVkNXSXl0JTJCN2pWamNYRnVnJTNEJTNEIiwiZXhwIjoxNTgxMDQ3NzE0fQ.yn6_ncSr1MckNsE3BkhsMW5r1muRJlfL dSOHBpYjjeo"
}

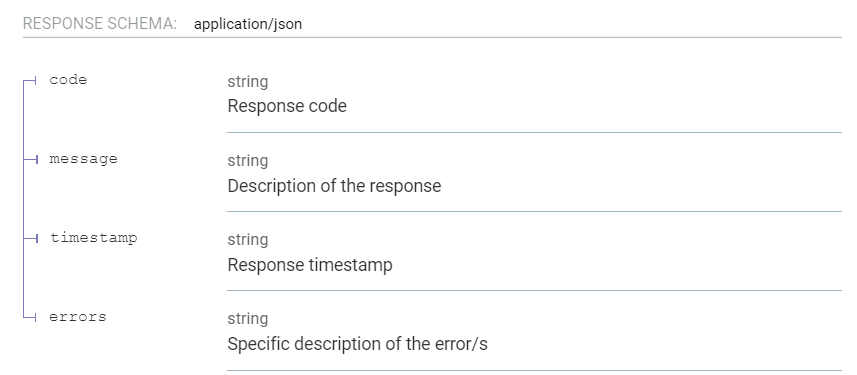

400

{
  "code": "ER.01",
  "message": "HTTP Request Error",
  "timestamp": "2020-02-07 03:27:50.653",
  "errors": [
    "Missing request header 'key' of type String"
  ]
}

401

{
        {
  "code": "ER.02",
  "message": "Authentication Error",
  "timestamp": "2020-02-07 03:30:06.267",
  "errors": [
    "Invalid credentials"
  ]
}
